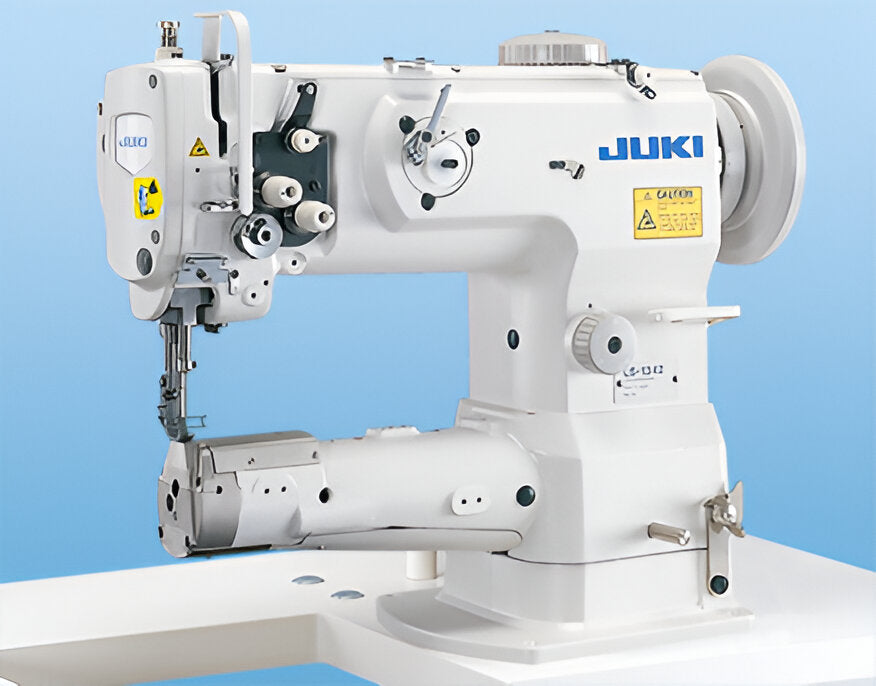

JUKI LS-1341

The LS Series offers a consistent stitching pitch and outstanding ability to sew sharp curves. This makes the machine ideal for the sewing of tubular articles.

Sewing capabilities and feed performance that respond to a broad range of uses in the sewing of heavy materials.

With its larger needle bar stroke, larger lift of the presser foot, and newly adopted double-tension mechanism, the machine sews beautifully with thick threads (low count thread) and at higher thread tensions. This allows the machine to sew a broad range of heavy materials.

• Gauge type: Standard
• Max. sewing speed: 2,500sti/min*
• Max. stitch length: 6mm(Normal/Reverse feed)
• Needle bar stroke: 36mm
• Lift of the presser foot: By hand: 9mm, By knee: 16mm
• Thread take-up: Slide type
• Amount of alternating vertical movement: 2.5~6.5mm
• Hook: Vertical-axis 1.6 fold-capacity hook, Safety mechanism
• Needle (at the time of delivery): 135×17, (Nm160) Nm100~Nm180
• Thread: #40~#5, B33~B138, Nm=90/3~20/3
• Safety mechanism: Provided as standard
• Lubrication: Centralized oil wick lubrication (hook: by an oiler)
• Lubricating oil: JUKI New Defrix Oil No.2 (equivalent to ISO VG32)
• Distance from needle to machine arm: 255mm
• Cylinder-bed diameter: φ72mm
• Weight of the machine head: 37.5kg

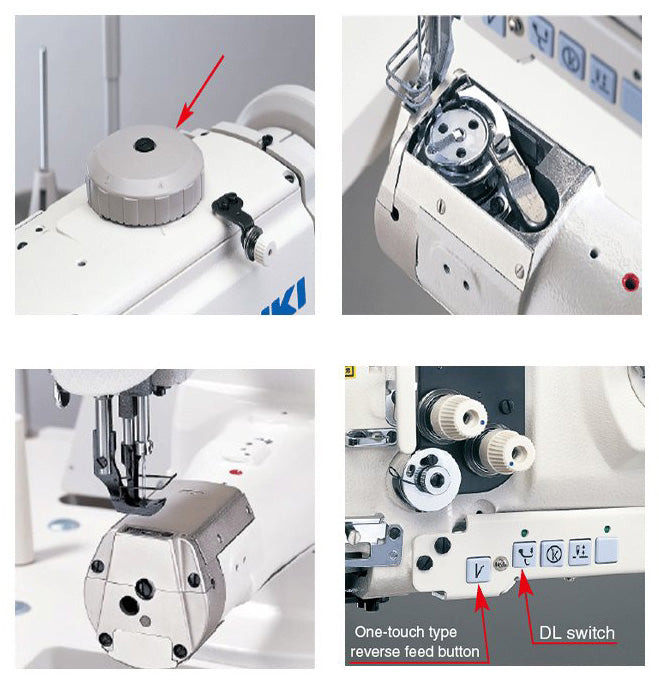

• Automatic reverse feed function: Option
